60W Ultra-Thin Dynamic Braking Resistor Aluminum Cased With Flying Leads

Ask Lasest Price
Brand Name :	ZENITHSUN
Model Number :	ASCB-4508
Certification :	RoHs
Price :	USD2.00-USD30.00
Payment Terms :	T/T, L/C, D/A, D/P, Western Union,paypal
Supply Ability :	500pcs/week
Delivery Time :	10-12 working days

Add to Cart

Product Details
Company Profile

60W Ultra-Thin Dynamic Braking Resistor Aluminum Cased With Flying Leads

60W Ultra-Thin Aluminum Cased Dynamic Braking Resistors With Flying Leads

Structure

1.High Power & small in size,preferred products for frequency converter,servo & numerical control industry.
2.Can be used with cooling device.
3.Ultra-thin Aluminum Housed Resistors,preferred products for frequency converter,servo & numerical control Industry.
4.With High Power&small in size,high stability,impact resistance and easy installation;good reliability & high consistency.

Features

1.Durable,vibration-proof,dissipates heat well and low temperature coefficient with resistance varying in direct proportion.
2.High stability,impact resistance and easy installation;Good reliability & high consistency.
3.For non-standard technical requirements and custom special applications,please contact us to discuss the details.
4.Conforms to the ROHS standard and the LEAD-FREE non-lead standard.

Specification

Performance Charactertics
Test	Conditions of Test	Testing Results
Resistance Tolerance	Testing Voltage ≤3V,Ambient Temperature 25℃	B---D---F---G---J--K
Temperature Coefficients	R0:Room Temperature(T0)Resistance Value R1:Room Temperature T0+100℃(T1)Resistance Value	±100～±250PPM/℃
Rated Load	40℃,rated voltage,1hour	△R≤±(3％+0.1Ω)
Short Time Overload	5 times rated power for 10s;10 times rated power for 5s;25 times rated power for 1s	△R≤±(2％+0.1Ω)
Dielectric Withstand Voltage	2 times Rated Power Voltage +1kv AC 60s (with grounding), leakage current 2.5mA ; 2 times Rated Power Voltage +2kv AC 60s (with grounding), leakage current 2.5mA ;	△R≤±(0.1％+0.05Ω)
Insulation Resistance	1000V DC	50M-1000MΩ1Min
Terminal Tensile Strength	wire diameter ≤1.5 with 20N,wire diameter ≥1.5 with 40N, terminal tension 20N copper end /stainless steel end,40N	No off
Vibration resistance	1.5mm,10-55-10Hz,each 2hours	No damage,No off
Load Life	at rated voltage,90 min "On",30 min "Off" ,total 500hours	△R≤±(3％+0.1Ω)
Thermal Shock	At 30℃,30min,-55℃,15min	△R≤±(0.5％+0.1Ω)
Humidity Resistance	Temp.:40±2℃ ,Humidity: 90％-95％.240hours	△R≤±(3％+0.1Ω)
Low Temperature Resistance Testing	store at -65℃±3℃ for 2H	△R≤±(1%+0.1Ω)
High Temperature Resistance Testing	store at 70 ℃± 2 ℃ for 16h, connect the rated voltage DC circuit for 1s	△R≤±(1%+0.1Ω)
Non-flammability	10 times rated power, power on for 5s	without combustion

Applications

Widely used in frequency converter,elevator,hoisting,ship,electric power,welding,power supply,military industry,aviation,wind power generation,solar power generation,automation equipment,railway system and other industries.

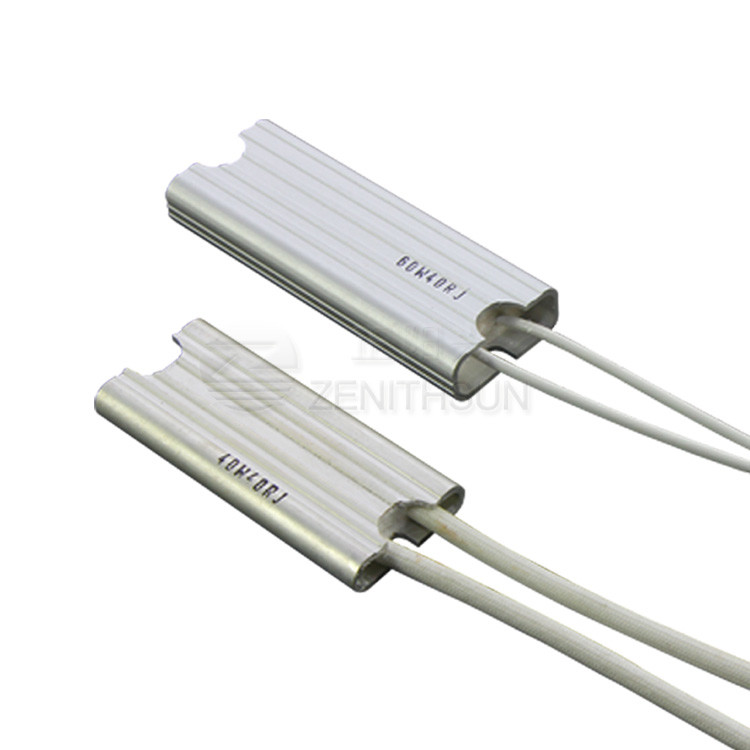

Products Image

60W Ultra-Thin Dynamic Braking Resistor Aluminum Cased With Flying Leads
