1500Watt Painted Type Ceramic Variable Wire Wound Power Rheostats with knob

Structure :
1.BCI series Variable Rheostat is wound with copper or chromium-alloy wire as a resistance element. Except for the slide contact surface,the entire component is coated with a high-temperature,non-flammable resin.After cooling and drying, insulation is applied through a high-temperature process.
2.Then a centered rotatingadjuster component is installed,which slides along the resistance element and varies the resistance to the desired value.
3.Single unit with multiple winding resistance values is available.
4.Different ceramic raw material & knobs,made-to-order rheostats available.
5.The product range covers a wide field, from flat,round- and wire wound resistors
6.Dimensions for reference only,consult us for more details.

Features:

1.Variable resistors are often called varistors or potentiometers.Variable BCI may used as a rheostat with two connections(the wiper and just one end of the track )or as a potentiometer with all three connections in use.
2.On one resistor ,can have the different resistance requirement(flat and round wire can be in same rheostat).
3. High power rating,resistance to humidity, resistance value in great adjustable range.
4.Motor controller also use BCI series as rheostat or potentiometer to control the speed of a by limiting the flow of current through them.
5.For non-standard technical requirements and custom special applications,please contact us to discuss the details.
6.Note:
1)Single Rheostat with Rated power 500W;
2)1000W(2pcs 500W Rheostats in series or parallel);
3)1500W(3pcs 500W Rheostats in series or parallel);
4)2000W(4pcs 500W Rheostats in series or parallel);
5)2500W(5pcs 500W Rheostats in series or parallel);
6)3000W(6pcs 500W Rheostats in series or parallel)
Black knob in the bottom

Specification

Applications:
Widely used in blenders,mixers,fans,power tools,educational modeling,load simulations,industrial machinery RPM adjustment,voltage and current adjustment,instruments,and automated control installations,etc.

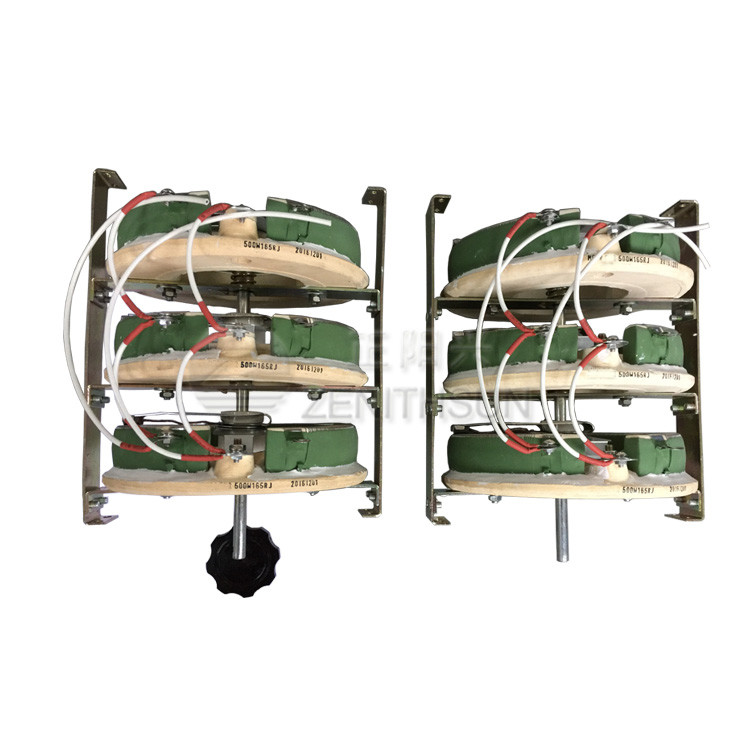

Products Image(1500W ---3pcs 500W Rheostats in series or parallel);
