10W 100M High Precision High Voltage Flat Dividers Resistors

Structure :

1.The resistor film with precious metal ruthenium slurry,with stable electrical properties.

2.Technological Process:electrode printing electrode sintering resistor printing resistor sintering medium printing medium sintering,then resistance adjustment,welding,encapsulation and other processes.

3.Non-Inductive,Resistance-high voltage ,anti-impulse,ideally suited for high voltage circuit application.
Submerged in dielectric oil or epoxy resin for best use results.

Features:

1.Planar high voltage resistors with proprietary non-inductive design, high precision,.
2.Low temperature coefficient, low voltage coefficient, high stability, high temperature silicone coating;
3.Lead Material:copper,tin-plated ;

Specifications :

Applications:

Widely used in high voltage power equipment,medical CT and X-ray machines,high voltage testing equipment,high voltage power supply,vacuum equipment,voltage divider,high voltage circuit,capacitor discharge circuit,high voltage buffer circuit,environmental protection equipment,electrostatic dust removal equipment,power system,imaging equipment,impulse voltage generator, etc.

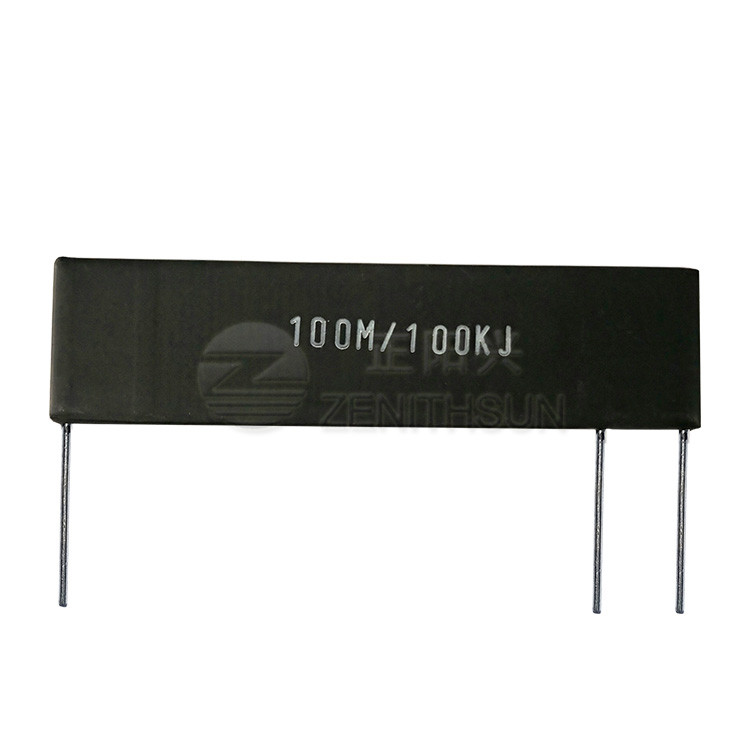

Product Image:
